singlecycle设计及实现1(register file寄存器)

发表于 更新于 Valine：
本文字数： 3.9k 阅读时长 ≈ 4 分钟
基于mips的 singlecycle CPU设计及实现中寄存器。

简介

这篇博文主要介绍的是基于mips的 singlecycle CPU设计及实现。

RTL 图像


因为刚开始写的时候只考虑了mips最基础的指令，没有考虑lui和跳转等指令，所以这是一个非常粗略的图像。主要由几个大块组成，register file寄存器，ALU算术逻辑单元，memory储存，control unit控制单元，instruction fetch指令获取单元，PC 程序计数器和decoder。由于decoder已经编写，所以这次设计直接从储存中读取opcode来识别指令，iload来识别各个寄存器的地址。接下来一一介绍每个单元。

register file 寄存器

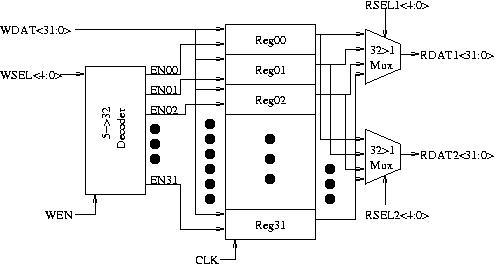

如图所示上图展示了寄存器的一些输入及输出。
输入:
WDAT(31:0) 32位的输入
WSEL(4:0) 寄存器地址选择
WEN 寄存器开关 1:开 0:关
CLK 寄存器时钟
RSEL1(4:0) 数据总线1 地址选择
RSEL2(4:0) 数据总线2 地址选择
输出:
RDAT1(31:0) 数据总线1值
RDAT2(31:0) 数据总线2值

以前写verilog代码的时候，并没有用过接口，这次因为是要求，所以更具接口的方式来编写。

主代码register_file.sv
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
`include "cpu_types_pkg.vh”//cpu总接口文件
`include "register_file_if.vh”//寄存器接口文件
module register_file

(
input logic CLK, nRST,
register_file_if.rf rfif//接口中 rf端口
);

//mips有32个32位的寄存器，并且需要放入reg
reg [31:0][31:0] register;//输出的寄存器
reg [31:0][31:0] nregister;//输入的寄存器
always_comb begin
nregister = register;
if (rfif.WEN && rfif.wsel != 0) begin//mips 0寄存器不能修改并且要在打开的情况才能修改
    nregister[rfif.wsel] = rfif.wdat;
end
rfif.rdat1 = register[rfif.rsel1];
rfif.rdat2 = register[rfif.rsel2];
end

always_ff @(posedge CLK, negedge nRST) begin//异步同步
if (!nRST)
    register <= '0;
else
    register <= nregister;
end

endmodule
接口代码register_file_if.vh
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
/*
  Eric Villasenor

  register file interface
*/
`ifndef REGISTER_FILE_IF_VH
`define REGISTER_FILE_IF_VH

// all types
`include "cpu_types_pkg.vh"

interface register_file_if;
  // import types
  import cpu_types_pkg::*;

  logic     WEN;
  regbits_t wsel, rsel1, rsel2;//在cpu_types_pkg.vh中定义 5，2^5 = 32
  word_t    wdat, rdat1, rdat2;//在cpu_types_pkg.vh中定义32

  // register file ports
  modport rf (
    input   WEN, wsel, rsel1, rsel2, wdat,
    output  rdat1, rdat2
  );
  // register file tb
  modport tb (
    input   rdat1, rdat2,
    output  WEN, wsel, rsel1, rsel2, wdat
  );
endinterface

`endif //REGISTER_FILE_IF_VH

`

测试代码register_file_tb.sv
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
\*
 Eric Villasenor

 register file test bench
*/

// mapped needs this
`include "register_file_if.vh"

// mapped timing needs this. 1ns is too fast
`timescale 1 ns / 1 ns

module register_file_tb;

 parameter PERIOD = 10;

 logic CLK = 0, nRST;

 // test vars
 int v1 = 1;
 int v2 = 4721;
 int v3 = 25119;

 // clock
 always #(PERIOD/2) CLK++;

 // interface
 register_file_if rfif ();
 // test program
 test PROG (CLK, nRST,rfif,v1,v2,v3);
 // DUT
`ifndef MAPPED
 register_file DUT(CLK, nRST, rfif);
`else
 register_file DUT(
.rfif.rdat2 (rfif.rdat2),
.rfif.rdat1 (rfif.rdat1),
.rfif.wdat (rfif.wdat),
.rfif.rsel2 (rfif.rsel2),
.rfif.rsel1 (rfif.rsel1),
.rfif.wsel (rfif.wsel),
.rfif.WEN (rfif.WEN),
.nRST (nRST),
.CLK (CLK)
 );
`endif

endmodule

program test
(
input logic CLK,
output logic nRST,

register_file_if.tb rfif,
input logic [31:0] v1,
input logic [31:0] v2,
input logic [31:0] v3
);
reg [5:0] i;
reg [3:0] testcase = 0;
initial begin
rfif.wsel = 0;
rfif.wdat = '0;
rfif.WEN = 0;
rfif.rsel1 = 0;
rfif.rsel2 = 0;
@(posedge CLK)
nRST = 1'b0;


@(posedge CLK)
nRST = 1'b0;

@(posedge CLK)
nRST = 1'b1;
rfif.wsel = 0;
rfif.WEN = 1;
rfif.wdat = '1;
rfif.rsel1 = 0;
rfif.rsel2 = 1;
testcase ++;
@(posedge CLK)
nRST = 1'b0;
@(posedge CLK)
nRST = 1'b1;
for (i = 0; i < 32; i = i + 1)
begin
    @(posedge CLK)
    rfif.wsel = i;
    @(posedge CLK)
    rfif.rsel1 = i;
    rfif.rsel2 = 31-i;
end
@(posedge CLK)
nRST = 1'b1;
rfif.wsel = 1;
rfif.WEN = 1;
rfif.wdat = '0;
rfif.rsel1 = 0;
rfif.rsel2 = 1;
testcase ++;
@(posedge CLK)
nRST = 1'b0;
@(posedge CLK)
nRST = 1'b1;
for (i = 0; i < 32; i = i + 1)
begin
    @(posedge CLK)
    rfif.wsel = i;
    @(posedge CLK)
    rfif.rsel1 = i;
    rfif.rsel2 = 31-i;
end
@(posedge CLK)
nRST = 1'b0;
@(posedge CLK)
nRST = 1'b1;
rfif.wsel = 1;
rfif.WEN = 1;
rfif.wdat = '1;
rfif.rsel1 = 1;
rfif.rsel2 = 0;
testcase ++;
@(posedge CLK)
nRST = 1'b0;
@(posedge CLK)
nRST = 1'b1;
for (i = 0; i < 32; i = i + 1)
begin
    @(posedge CLK)
    rfif.wsel = i;
    @(posedge CLK)
    rfif.rsel1 = i;
    rfif.rsel2 = 31-i;
end
@(posedge CLK)
@(posedge CLK)
nRST = 1'b0;
@(posedge CLK)
@(posedge CLK)
$finish;
end
endprogram

测试文件用questasim来验证，本来应该用assert更规范的测试，第一次懒惰了。
以上是singlecycle中寄存器文件的
